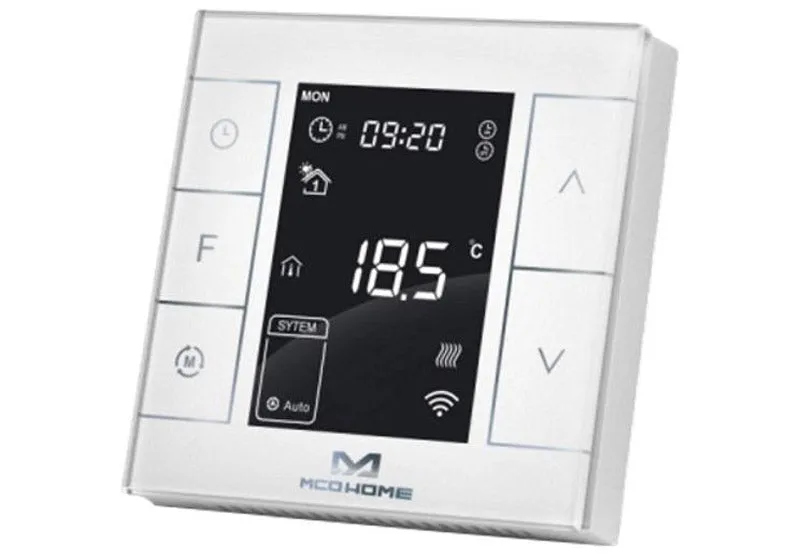

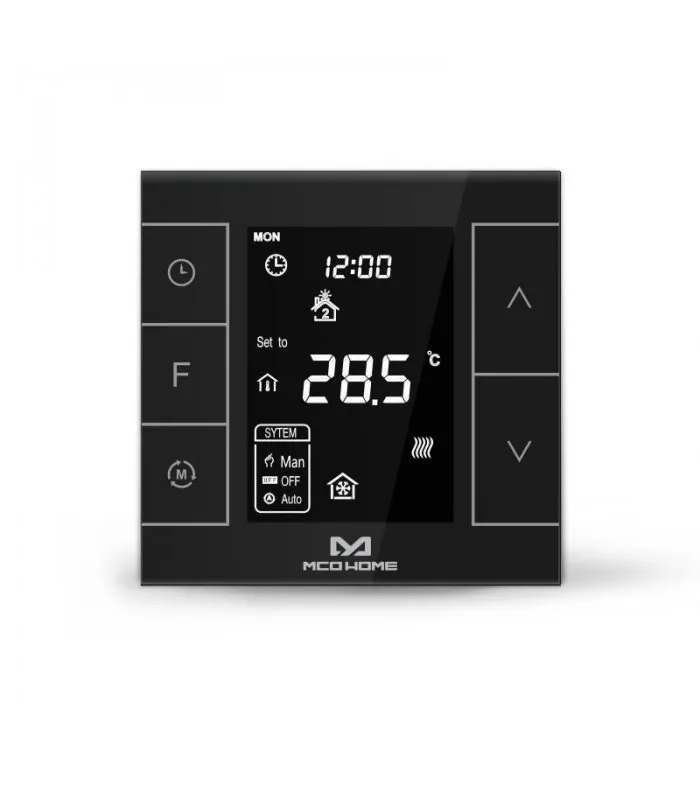

The MCOEMH7H-WH2 thermostat is the second Generation of the MCO Home Underfloor water heating thermostat. The thermostat is designed to be used for room temperature control, equipped with Z-Wave wireless technology. It is applied to control water heating systems such as wall mounted boiler, water valve/pump, under floor pipes, radiator systems etc. and electrical systems such as heating cable, electro-thermal film, heating actuator, electrical globe valve etc.

The second Generation has the functionality to be connected in its association group with binary actors like plugs and relays. That allows you full control of any On/Off heating actuator via the MCOEMH7H-WH2 without the permanent use of a static Z-Wave controller.

The wall thermostat MCOEMH7H-WH2 requires an installation with permanent mains power. Thanks to its modern design with capacitive glass touch panel it is particularly suited for visible installation in living areas. With the modern designed glass touch thermostats by MCO you can various heating and cooling systems – e.g. heating cable, heating film, water valve, electrical valve, boiler, fan coil, solar energy controller, heat pump, ventilation system etc.

Step 1: Separate the device into two parts: the display panel and the bottom.

Step 2: Insert all wires into the right terminals and tighten screws. Wiring diagrams are shown below.

Step 3: Push the bottom into the junction box and secure it with two screws, and then mount the touch panel back.

Step 4: Confirm the device is well mounted, power on and it is ready to operate.
