PRODUCT DETAILS
Description

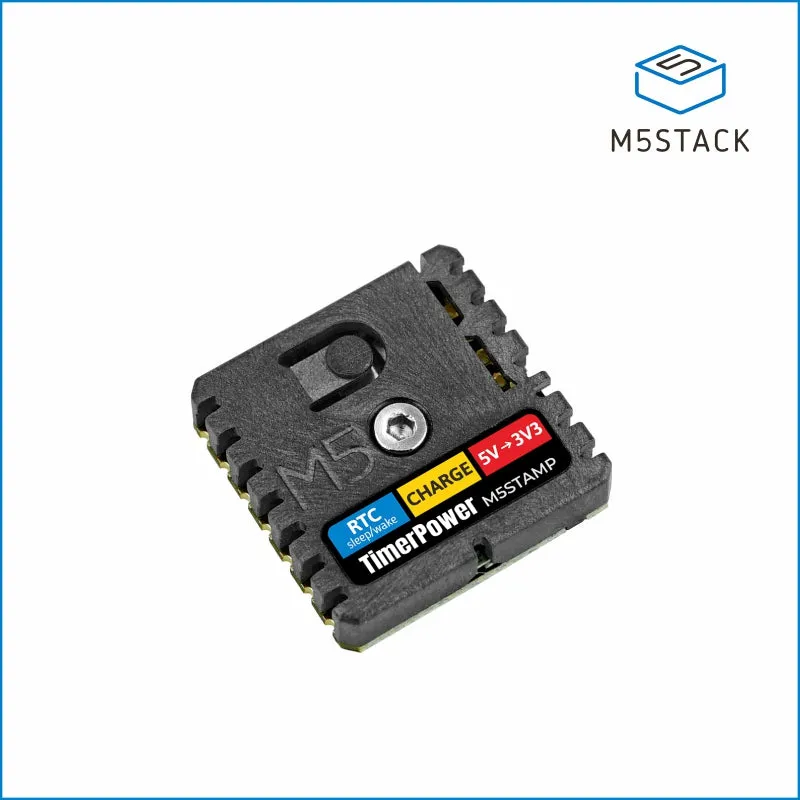

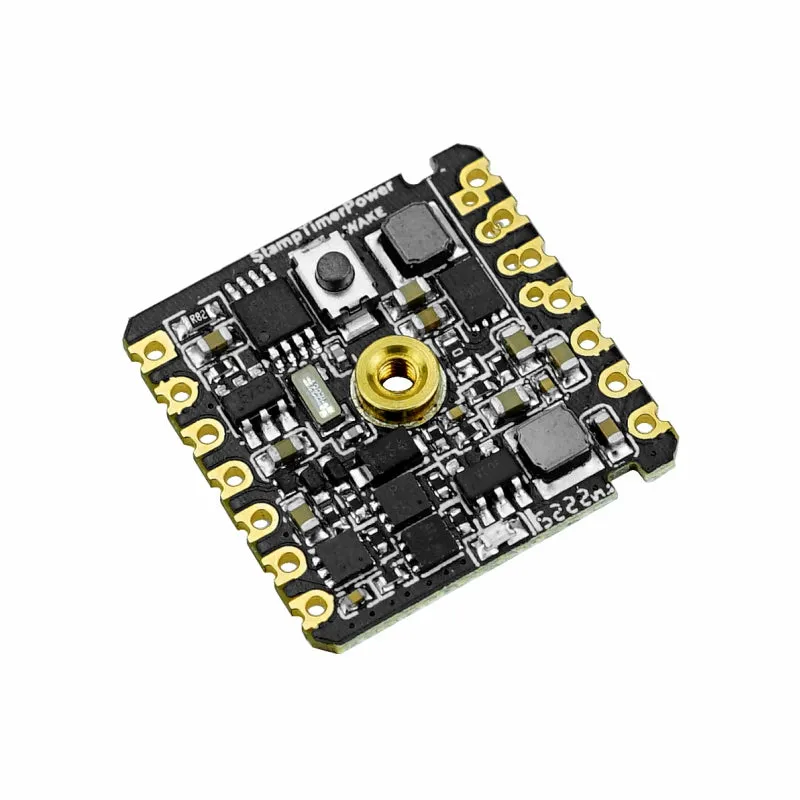

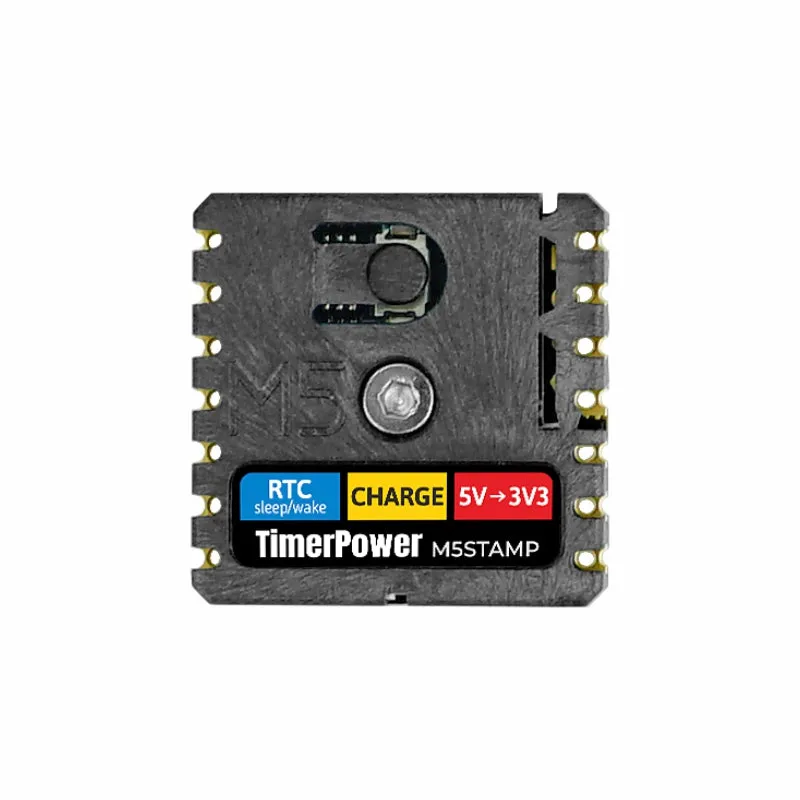

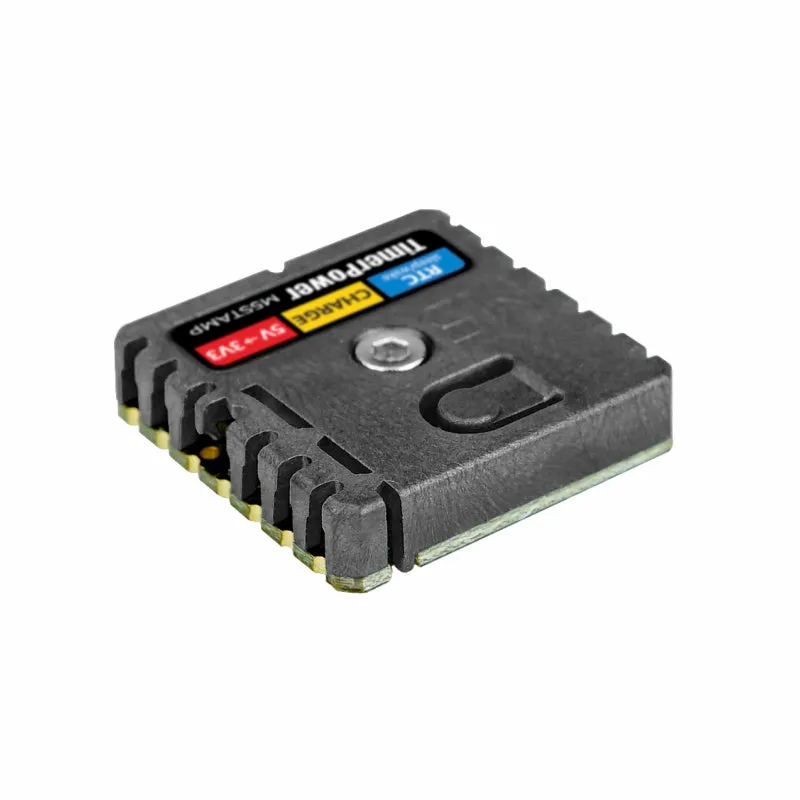

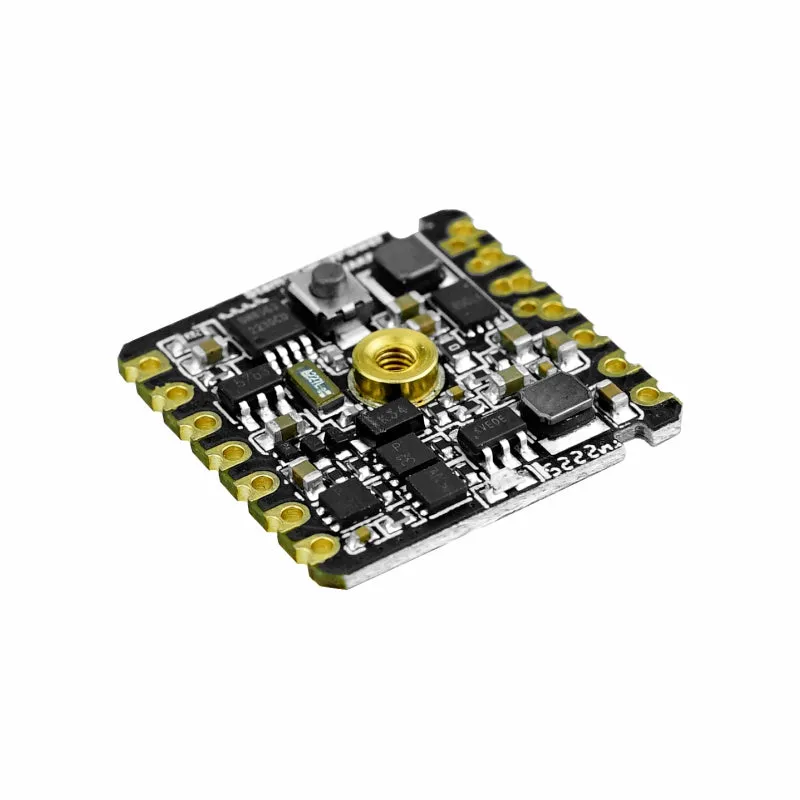

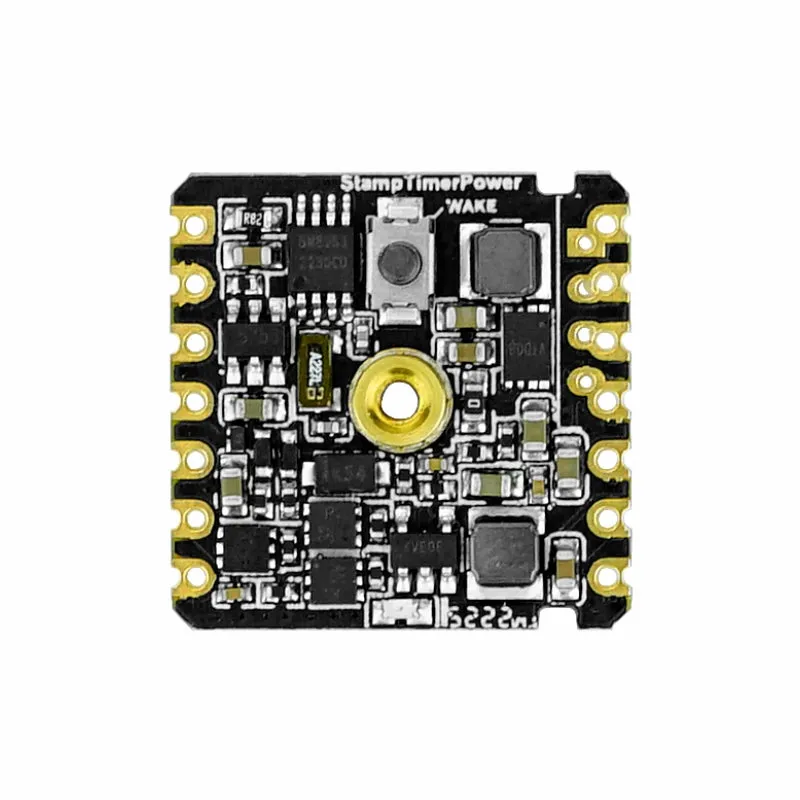

StampTimerPoweris alow-power power control modulewith built-inRTC wake-upin a STAMP series package, withmanual wake-up manual sleep RTC timing wake-up battery charging 5V boost output 3V3 power outputand other functions, and the RTC adoptsBM8563,Theoverflow timecan be set to wake up the module for power. The module is available in a STAMP package and can be used as apower supply part for low-power productsby usingSMD,DIP, and flying wires.
Features

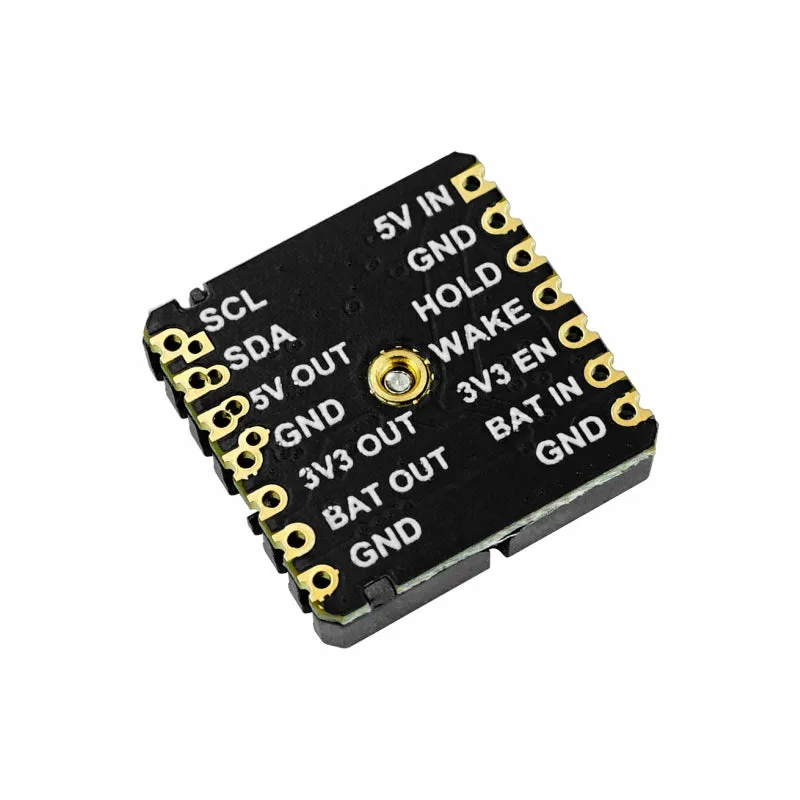

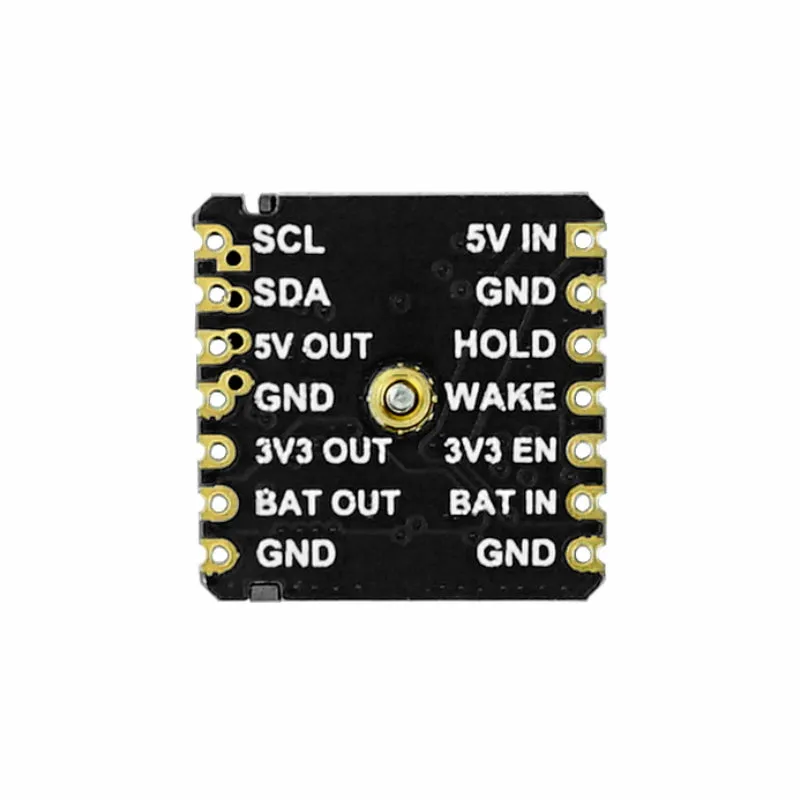

- Multi-IO lead-out, support multiple application forms (SMT, DIP, flying wire)
- Manual or software-timed wake-up or hibernation
- Lithium battery charging and 5V boost
- 3.3V output DCDC circuit

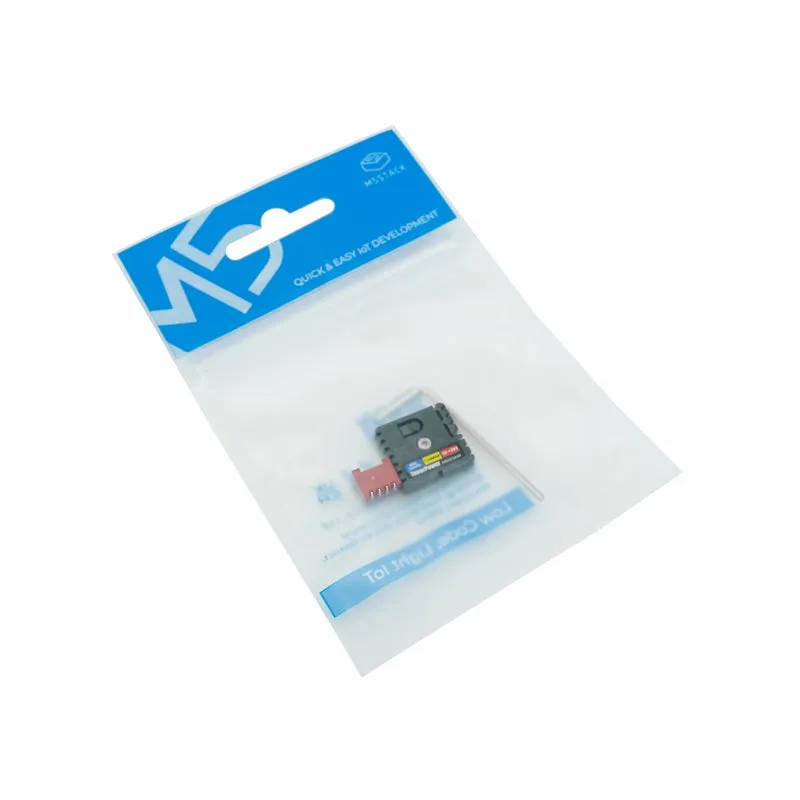

Includes
- 1x StampTimerPower
- 1x 2.0mm hex key
- 1x HY2.0-4P terminal
Applications
- Low power consumption product power section
- Low-power time-lapse camera
- Battery doorbell
- Wearables
- Smart home
Specification
| Resources | Parameters |
|---|---|
| RTC | BM8563 |
| Battery management IC | TP4057 |
| I2C mailing address | default 0x51、0xA2(write)、0xA3(read) |
| IO interface spacing | 2.54mm |
| Fixing screw specifications | M2*4 countersunk hexagonal mechanical teeth |
| Operating temperature | 0°C to 60°C |

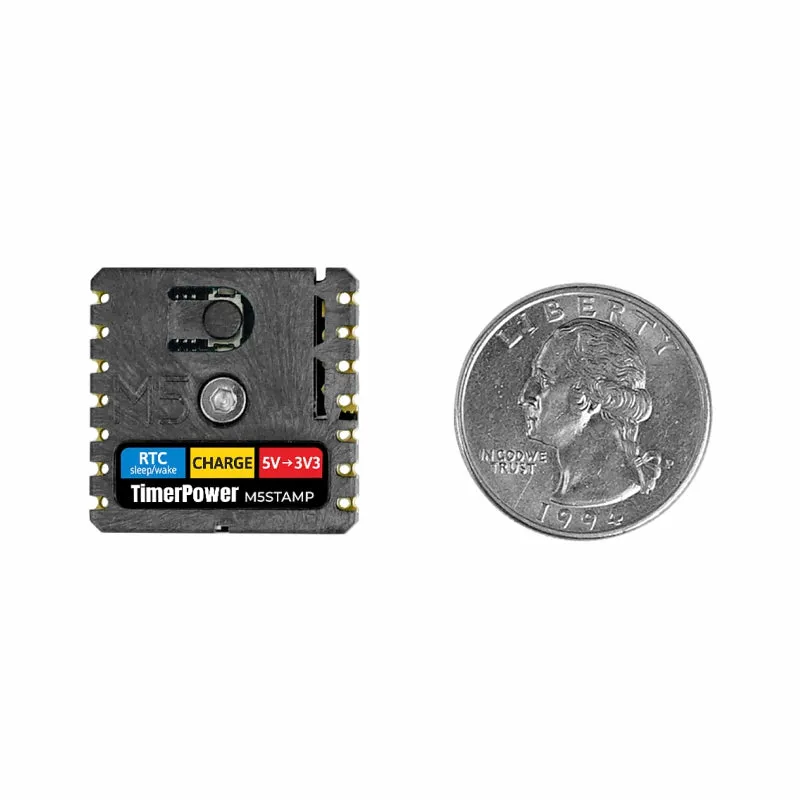

| Product Size | 20mm × 20mm × 5mm |
| Package Size | 136mm × 92mm × 13mm |
| Product Weight | 2.6g |
| Package Weight | 5.8g |
