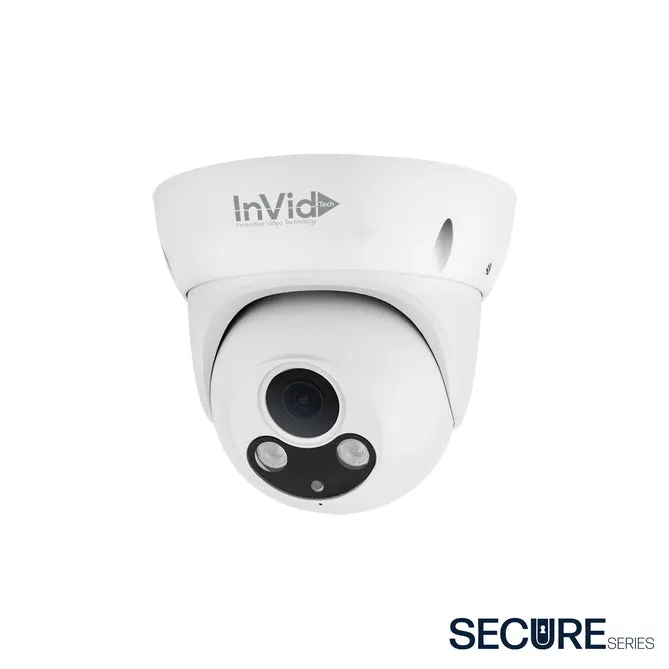

5 Megapixel IP Plug & Play, Outdoor Turret, Fixed Lens, up to 65’ IR Range, White Light Range up to 49’, D-WDR, Built-in Mic, SD Card Slot, 12VDC /PoE
Features
- Smart Analytics: AI Human Body Detection
- White Light OR Deterrent: Human Body Triggered
- 24/7 Color at Night with White Light OR IR/White Light Trigger - 5 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 65’
- White Light Range up to 49’
- True Plug & Play With Ultra & Paramont*
- Partial Plug & Play with Vision**
- Audio Input: Built-in Mic
- IP66 Weather Resistant
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
*Latest firmware required for Paramont Series
**Once the camera is connected into the back of the NVR it will detect and assign an IP address but not auto connect. Simply go to the camera menu in the NVR and change from Plug N Play to Manual and put in the cameras password & it will connect. No IP Utility or laptops needed!
Camera |
|
|
Image Sensor |
1/3” Progressive Scan CMOS |
|
Max. Resolution |
2560(H)×1920(V) |
|
Electronic Shutter |
Auto/Manual, 1/5 ~ 1/20,000s |
|
Min. illumination |
Color: 0.1 Lux @ (F1.2,AGC ON) , |
|
B/W: 0 Lux @ (IR LED ON) |
|
|
S/N Ratio |
55 dB |
|
Day/Night |
Auto(ICR)/Day / Night |
|
Wide Dynamic Range |
DWDR |
|
LED Range |
Up to 20 m (66.61 ft) |
|
IR On/Off Control |
Auto/Manual |
Lens |
|
|
Lens Type |
Fixed focal |
|
Iris |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
F Number |
F1.6 |
|
Angle of View |
H: 93.14°, V: 50.43° |
Video |
|
|
Streaming Capability |
2 Streams |
|
Stream/Frame Rate |
Main Stream: 2560×1920, 2560×1440, 2304×1520, 1920×1080, 1280×720 @ 20fps Sub Stream: 640×360 @ 20fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Main Stream: 128kbps ~ 4096kbps Sub Stream: 16kbps ~ 1536kbps |
|
Image Adjustment |
Brightness/Sharpness/Contrast/Saturation |
|
White Balance |
Auto/Manual |
|
Mirror |
Support |
|
Noise Reduction |
2D/3D DNR |
|
Image Enhancement |
WDR/HLC/BLC/Defog |
|
Motion Detection |
Support |
|
Privacy Masking |
Support |
Smart Function |
|
|
Human Detection |
Support |
|
Smart Event |
Perimeter, Virtual Fence |
Network |
|
|
Protocols |
IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, UPNP, ICMP, IGMP, NTP, SMTP, 802.1x, SNMP |
|
Interoperability |
ONVIF, SDK |
|
Max. User Access |
4 Users |
|
Web Viewer |
|
|
Management Software |
InVid View |
Interface |
|
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Audio |
Built-in Mic |
|
Storage |
Built-in Micro SD card slot, up to 256GB |
|
Reset Button |
Support |
Electrical |
|
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
|
Power Consumption |
Max 5.5W |
|
Operating Temperature |
-31°F ~ 131°F (-35°C ~ 55°C) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Certifications |
CE/FCC |
|
Casing |
Metal |
|
Dimensions |
φ4.65 × 4.08 in (φ118.2 × 103.6 mm) |
|
Net Weight |
1.34 lb (0.61 kg) |
