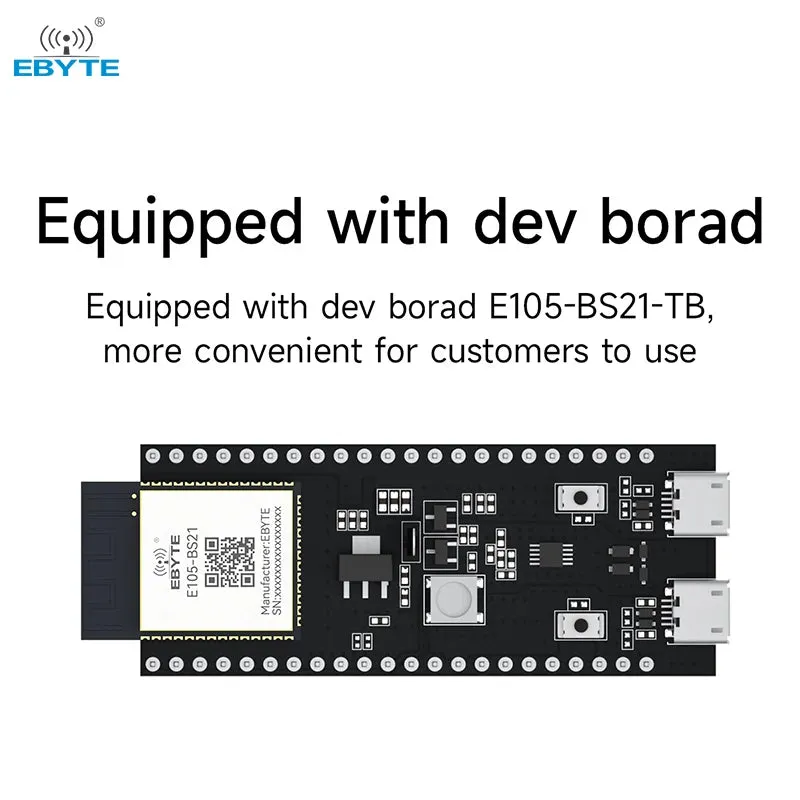

E105-BS21 SparkLink Low Energy BLE Module SLE module BS21 chip solution BLE & SLE, BLE5.2 low power long distance wireless module
[Chip solution]：BS21
[Communication interface]：UART
[Communication distance]： 270m
[Product size]： 25.5*18mm
[Introduction]：E105-BS21 module is a serial port to SLE (SparkLink Low Energy) module based on the SparkLink protocol version 1.0 and a PCB antenna interface. It has the characteristics of small size, low power consumption, long transmission distance, fast transmission speed, strong anti-interference ability, and low latency. It works in the 2.4GHz frequency band and has a maximum RF transmission power of 6dBm. The SLE module uses universal AT commands and is easy and quick to operate. The module can be widely used in smart wearables, home automation, smart appliances, accessories and remote controls, smart control and other fields.
| Main parameters | Performance description | Remark | |||
| minimum value | Typical value | maximum value | |||
| Working voltage (V) | 1.8 | 3.3 | 3.6 | - | |
| Supply voltage (V) | - | - | 3.9 | - | |
| Communication level (V) | - | 3.3 | - | There is a risk of burning if using 5V level | |
| Working temperature (℃) | -40 | - | 85 | Industrial grade design | |
| Working frequency band (MHz) | 2402 | - | 2480 | Support ISM band | |
| Transmit power (dBm) | -28 | 0 | 6 | - | |
| Power consumption | Emission current (mA) | - | 12.5 | - | Peak transient current@6dBm |
| - | 5.3 | - | Peak transient current@0dBm | ||
| Receive current (mA) | - | 2.5 | - | - | |
| Sleep current(uA) | - | 6 | - | - | |
| Receiving sensitivity (dBm) | - | -90.6 | - | 4 Mbit/s frame type 1 | |
| Communication distance (m) | - | 270 | - | Clear and open environment, height 1 meter, @6dBm, airspeed 4Mbps | |
| Main parameters | describe | Remark |
| IC solution | BS21 | - |
| Crystal frequency | 32MHz | - |
| Starlight Protocol | SLE 1.0 | - |
| Communication interface | UART | - |
| Packaging method | SMD type | - |
| FLASH | 512KB | - |
| RAM | 160KB | - |
| Kernel | RISC-V | - |
| Overall dimensions (IPEX) | 19.2*18mm | Corresponds to E105-BS21X module, tolerance range ±0.2mm |

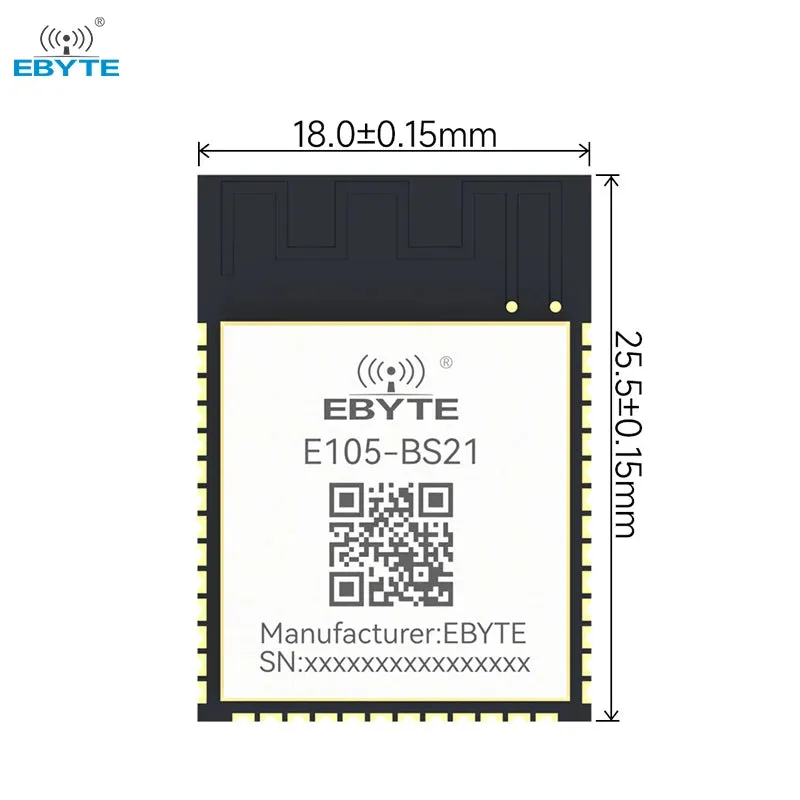

| Overall dimensions (PCB) | 25.5*18mm | Corresponds to E105-BS21 module, tolerance range ±0.2mm |
| Antenna interface | IPEX | Equivalent impedance is about 50Ω, corresponding to E105-BS21X module |
| Antenna interface | PCB | Equivalent impedance is about 50Ω, corresponding to E105-BS21 module |
