Product Details
＋
**Custom Order - 1-2 week lead time**

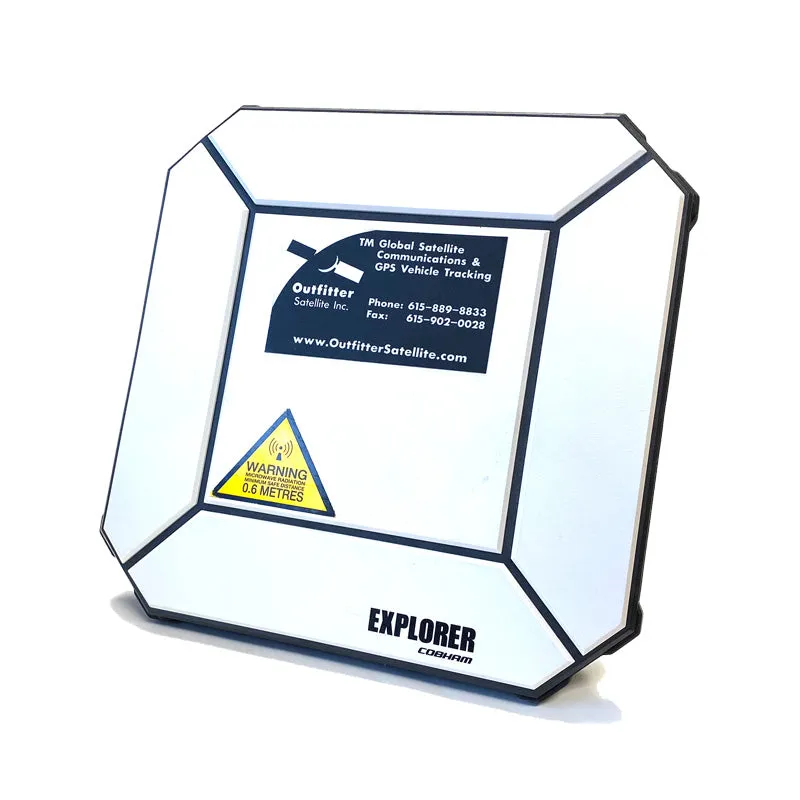

The EXPLORER 510 is a compact Inmarsat BGAN terminal featuring an intuitive web interface for ease of use and requires no special software. The EXPLORER 510 is the smallest BGAN terminal made by Cobham. Weighing in at only 3.1lbs (1.4 kg). It is a Class 2 Inmarsat BGAN terminal that offers standard IP data speeds up to 464 kbps. Phone calls can be made using the EXPLORER smart phone app (free).
Features
- The EXPLORER 510 BGAN terminal can be controlled with your iOS or Android smartphone through a free mobile app
- Dust and water-resistant
- Intuitive web interface with a built-in user manual
- Small and compact

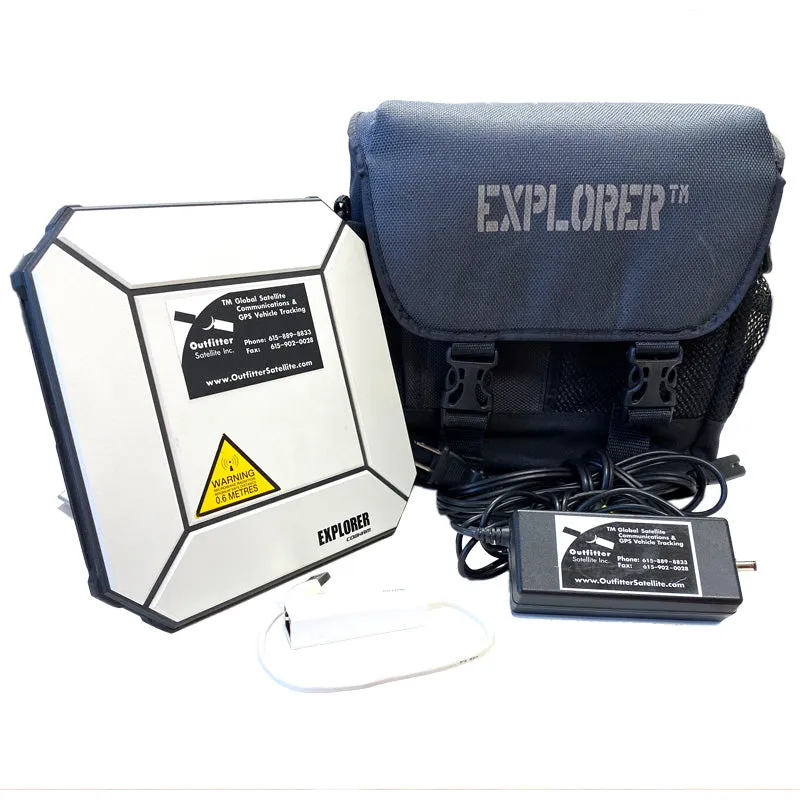

What's In the Box?
- EXPLORER 510 Terminal with built-in Lithium Ion Battery
- EXPLORER Softbag with carry strap
- USB to Ethernet Adapter Cable
- 100-240VAC Power Supply with Euro plug; separate Euro-to-US adapter plug
- Quick Start Guide (the User Manual embedded in the terminal's internal web server)
Specification
| Dimensions | Height: 7.8"; Width: 7.8"; Depth: 1.6" |
| Weight (with battery) | 3.1 lb (1.4 kg) |
| Standard IP Data | Up to 464 kbps |
| Streaming IP Data | 32, 64, and 128 kbps |
| Voice | 4 kbps (standard voice) and 3.1 kHz audio/64 kbps (premium voice) |
| Text | 160 characters |
| Simple User Interface | WLAN LED, Status LED, Power Button, USB host, and web interface |
| WLAN Access Point | IEEE 802.11 b/g/n |
| USB Port | Version 2.0 (host); charging up to 1A |
| Robustness | 1.64 ft drop onto concrete (operational, 95% survival) |
| Ingress Protection against water and dust | IP-66 Compliant (TBC) |
| DC Input Range | 10.5 to 32 VDC |
| AC/DC Power Supply | Input: 100-240 VAC (47-63 Hz); 50W |
| Output | 19 VDC |
| Battery | Built-in Lithium Ion |
| Standby Time (TBC) | 36 hours ( 32°F to 131°F) |
| Standard Call | 3 hours ( 32°F to 131°F) |
| Minimum number of charging cycles | 300 |
| Recharge Time | Under 3 hours |
| Charging Temperature | Between 32°F to 113°F |
| Operational Temperature | -13°F to 131°F |
| Storage Temperature | -40°F to 176°F (excluding battery) |
| Battery Storage Temperature | -4°F to 68°F |
| Relative Humidity | 95% non-condensing (at 104°F) |
